Spring-rabbit的简单应用

1.创建Maven工程并导入依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
<dependencies>

        <!-- https://mvnrepository.com/artifact/org.springframework.amqp/spring-rabbit -->
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
            <version>2.2.2.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.2.2.RELEASE</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.rabbitmq/amqp-client -->
        <dependency>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
            <version>5.7.3</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/log4j/log4j -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-log4j12 -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
        </dependency>
    </dependencies>

2. 编写applicationContext.xml文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/rabbit
                http://www.springframework.org/schema/rabbit/spring-rabbit-1.4.xsd
                http://www.springframework.org/schema/beans
                http://www.springframework.org/schema/beans/spring-beans-4.0.xsd">

    <!-- 定义RabbitMQ的连接工厂 -->
    <rabbit:connection-factory
            id="connectionFactory"
            host="localhost"
            port="5672"
            virtual-host="host100"
            username="admin"
            password="admin"
    />

    <!-- 定义Rabbit模板，指定连接工厂以及定义exchange -->
    <rabbit:template id="rabbitTemplate" connection-factory="connectionFactory" exchange="fanoutExchange"/>

    <!-- MQ的管理，包括队列，交换机声明等 -->
    <rabbit:admin connection-factory="connectionFactory"/>

    <!-- 定义交换机 -->
    <rabbit:fanout-exchange name="fanoutExchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding queue="fanout_Queue"></rabbit:binding>
        </rabbit:bindings>
    </rabbit:fanout-exchange>

    <!-- 定义队列 -->
    <rabbit:queue name="fanout_Queue" auto-declare="true" durable="true"/>

    <!-- 监听队列 -->
    <rabbit:listener-container connection-factory="connectionFactory">
        <rabbit:listener queue-names="fanout_Queue" ref="consumer" method="listen"></rabbit:listener>
    </rabbit:listener-container>

    <!-- 消费者 -->
    <bean id="consumer" class="com.self.rabbitmq.springrabbit.SpringRabbitConsumer"></bean>


</beans>

3.读取配置文件，获取Rabbit模板对象(生产者)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
package com.self.rabbitmq.springrabbit;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.context.support.ClassPathXmlApplicationContext;

/**
 * Spring-rabbit
 * 生产者
 */
public class SpringRabbitProducer {

    public static void main(String[] args) throws InterruptedException {

        //读取配置文件
        ClassPathXmlApplicationContext app = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");
        //获取rabbitMQ模板
        RabbitTemplate rabbitTemplate = app.getBean("rabbitTemplate", RabbitTemplate.class);
        //发送消息
        rabbitTemplate.convertAndSend("Hello Spring-rabbit");

        Thread.sleep(1000);//休眠1秒
        app.close();
    }
}

4. 消费者

1
2
3
4
5
6
7
8
9
10
11
12
13
14
package com.self.rabbitmq.springrabbit;

/**
 * Spring-Rabbit的消费者
 */
public class SpringRabbitConsumer {


    public void listen(String consumer){

        System.out.println("消费者 ： " + consumer);

    }
}

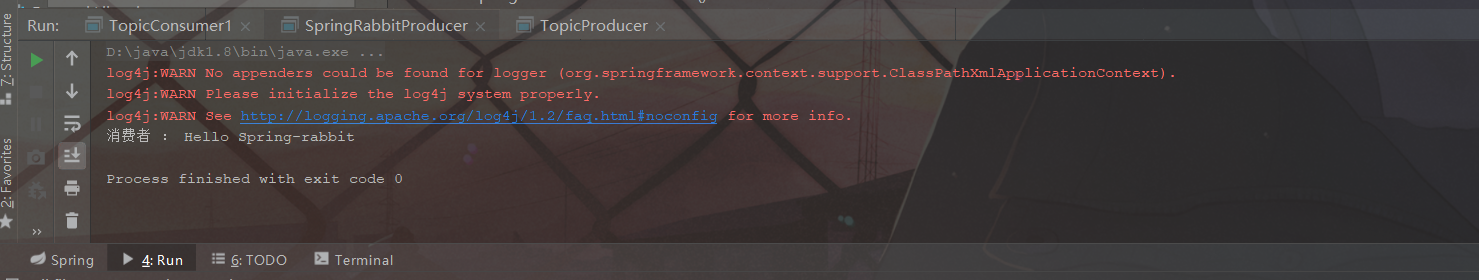

结果输出截图 :

5.结论

通过读取Spring的配置文件applicationContext.xml的形式，创建连接rabbitmq的连接工厂，并声明交换机与队列等。无需写大量的代码，只需要写配置文件即可。
